18V DC, 1A, Ind temp, utbytbar plugg (EU)

Best.nr 20109192

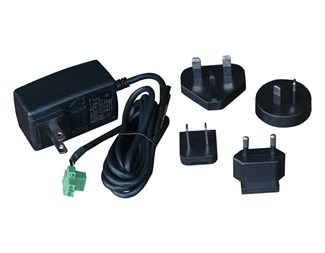

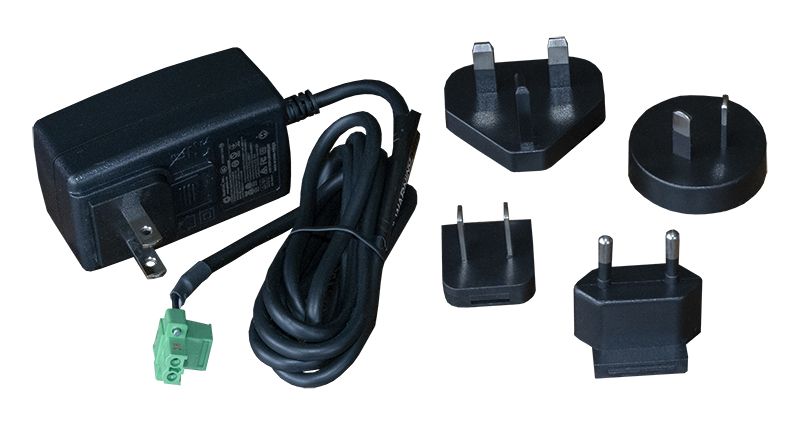

Industriell PSU/Nätadapter till IX10/IX20

PSU 18VDC 1A, Level VI, Industriell temperatur, utbytbar plug för US, UK, EU, AU; 2pin Combicon screw terminal plug; Lämplig till IX10 och IX20 Läs mer

Varianter

Lagerstatus 0 st
Leveranstid 10-14 dagar
624 SEK exkl. moms
Lägg i varukorg
Gå till produkt

  • Produktbeskrivning

    Compatibility: Digi IX10, Digi IX15, Digi IX20
    Contains: Power supply with plug tips for US, UK, EU, AU
    Green power on indicator LED
    Rated input voltage range: 100 - 240 V
    Input frequency: 50 - 60 Hz
    Rated input current: 0.6 A
    Max. in-rush current: 30 A @ 115 VAC
    60 A @ 230 VAC
    Input plug type: Proprietary, removable plug tips for: US (type 1); AU (type 2); US (type 3); EU (type 4)
    Max. load current: 1.0 A
    Min. load current: 0 A
    Output power: 18 W
    Output plug: Phoenix Contact p/n 1912184, 2 pos; 5.08 mm (0.2 in) pitch, rewireable plug with securing screw
    Operating temperature: -40° C to 74° C (-40° F to 165° F)
    Storage temperature: -40° C to 80° C (-40° F to 176° F)
    Size (L x H x W): PSU (excl lead): 74 mm x 44 mm x 40 mm (2.91 in x 1.73 in x 1.57 in) excluding removable plug tips; 167 mm x 84 mm x 59 mm (6.57 in x 3.31 in x 2.32 in) in packaging box (with plug tips)
    Weight: PSU only: 150 g (0.33 lb);
    In packaging with plug tips: 205 g (0.45 lb)
    Cord length: 1.5 m +/- 20 mm (4.92 ft +/- 0.79 in)
    Certifications: CE, FCC, ETL, UL 1310, RCM, CCC, VCCI, PSE, S-Mark, CB-62368, CB-61558-2-16, CB-60950, EAC, RoHS2, WEEE, CAN ICES-3
    Ingress protection: IP42
