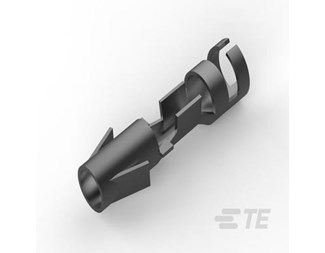

TE 925661-1

Varianter

Lagerstatus 47 st

Leveranstid 1-2 dagar

3,50 SEK exkl. moms

Gå till produkt

Circuit Application:	Power
Connector & Contact Terminates To:	Wire & Cable
Contact Base Material:	Brass
Contact Current Rating (Max):	17 A
Contact Mating Area Plating Material:	Tin
Contact Orientation:	Straight
Contact Retention Type within Housing:	Locking Lance
Contact Retention Within Housing:	With
Contact Type:	Socket
Mating Pin Diameter:	.14 in, 3.56 mm
Operating Temperature Range:	-55 – 105 °C, -67 – 221 °F
Operating Voltage:	250 VAC
Packaging Method:	Box
Packaging Quantity:	500
Power Contact Type:	Contact
Termination Method to Wire & Cable:	Crimp
Wire Contact Termination Area Plating Material:	Pre-Tin
Wire Contact Termination Area Plating Material Finish:	Bright
Wire Contact Termination Area Plating Thickness:	15.74 – 137.79 µin, .4 – 3.5 µm
Wire Insulation Support:	Without
Wire Size:	20 – 14 AWG, .5 – 2 mm²
