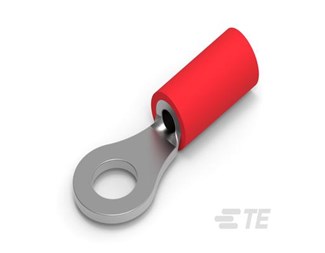

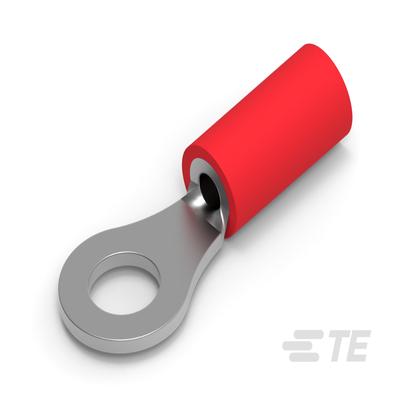

PG R 22-16 COmm 22-18 MIL 8

Best.nr 20202315

TE 34148

Terminals RING 22-16AWG STUD 8 Läs mer

Varianter

Minsta antal 1000 st
Lagerstatus 0 st
Leveranstid 34 dagar
2,30 SEK exkl. moms
Lägg i varukorg
Gå till produkt

  • Produktbeskrivning

    Supplier: TE CONNECTIVITY/AMP BRAND
    Part No: 34148
    RoHS: Yes
    HTS-US: 8536904000
    HTS-EMEA: 8536901000
    HTS-CN: 8536901100
    COO: US
    ECCN: EAR99
    Package Type: BOX
    Unit Weight:
    Mfg. Standard Pack: 1
    Unit of Measure (UOM): EA
    Barrel Type: Closed
    Compatible With Wire Base Material: Copper
    Compatible With Wire Plating Material: Tin
    Number of Holes: 1
    Operating Temperature Range: 105 °C, 221 °F
    Packaging Method: Loose Piece
    Packaging Quantity: 1000
    Product Length: .86 in, 21.74 mm
    Product Weight: 2.237 g
    Sealable: No
    Stud Diameter: .171 in, 4.74 mm
    Stud Size: #8 , M4
    Terminal Orientation: Straight
    Terminal Plating Material: Tin
    Tongue Thickness: .031 in, .79 mm
    Voltage Rating: 600 V
    Wire Insulation Support: With
    Wire Insulation Support Retention Type: Insulation Support
    Wire Size: 22 – 16 AWG, 509 – 3260 CMA, .26 – 1.65 mm²
