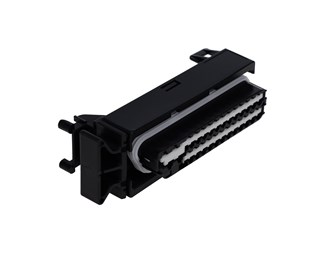

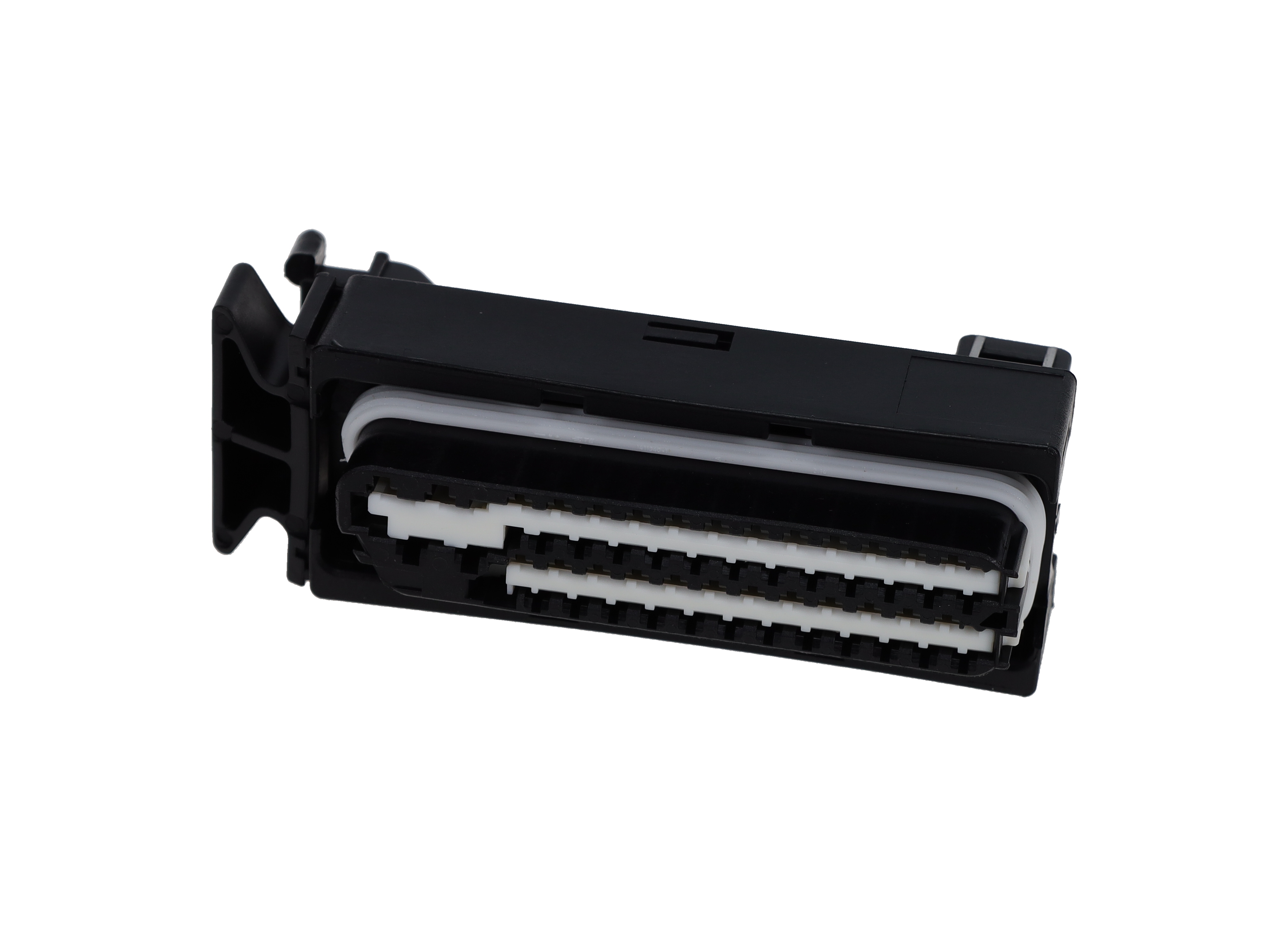

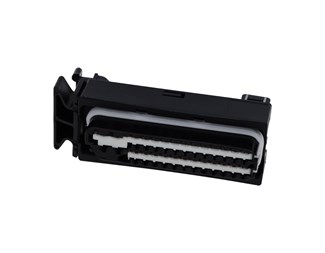

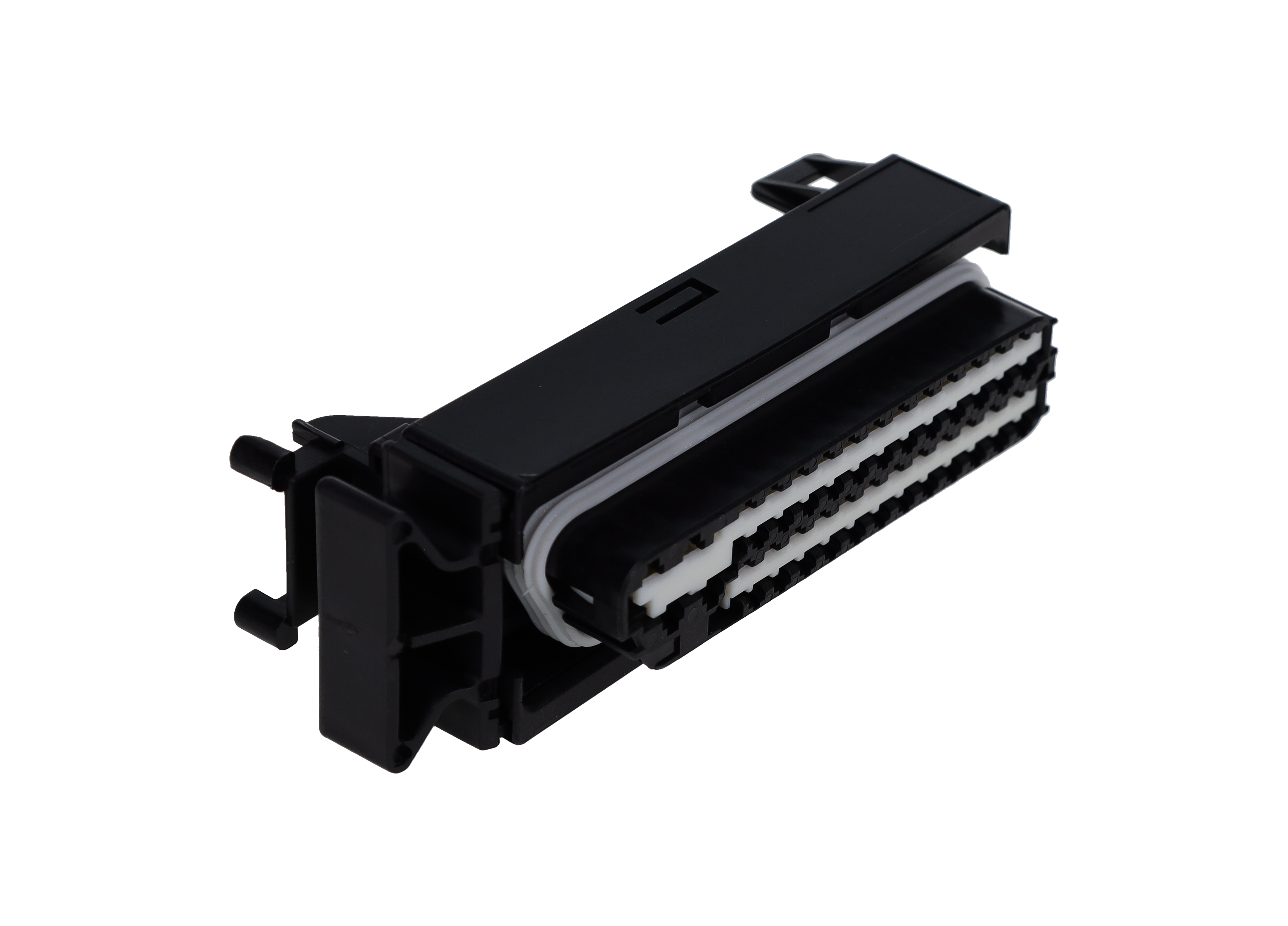

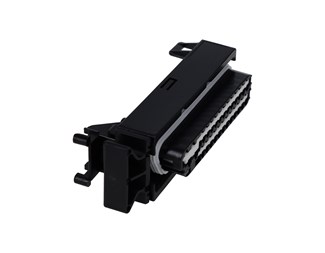

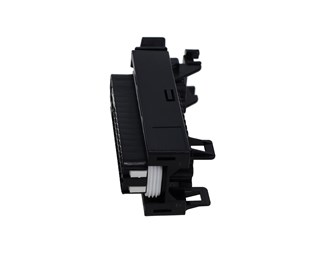

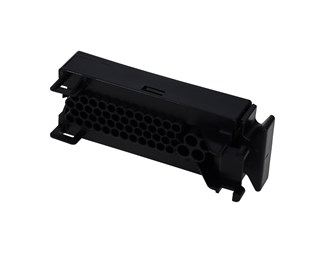

TE 1393450-3

Varianter

Lagerstatus 203 st

Leveranstid 1-2 dagar

75,50 SEK exkl. moms

Gå till produkt

Alias/AKA:	V23542C1052B102
Cable Exit Angle:	90°
Centerline (Pitch):	.169 in, .255 in, 4.3 mm, 6.5 mm
Circuit Application:	Power & Signal
Connector & Contact Terminates To:	Wire & Cable
Connector & Housing Type:	Housing for Female Terminals
Connector Height:	1.319 in, 33.5 mm
Connector Mounting Type:	Cable Mount (Free-Hanging)
Connector Position Assurance Capable:	No
Connector Shape:	Rectangular
Connector System:	Wire-to-Board , Wire-to-Wire
Contact Current Rating (Max):	10 A, 30 A
Contact Size:	1.5mm , 2.8mm
Contact Type:	Receptacle
Housing Material:	PBT GF
Mating Alignment:	With
Mating Alignment Type:	Keyed
Mating Tab Width:	.06 in, .11 in, 1.5 mm, 2.8 mm
Nominal Voltage Architecture:	12 V, 24 V
Number of Positions:	52
Number of Rows:	4
Operating Temperature (Max):	130 °C, 266 °F
Operating Temperature Range:	-40 – 130 °C, -40 – 266 °F
Operating Voltage:	12 VDC
Packaging Method:	Box
Primary Locking Feature:	On the terminal
Primary Product Color:	Black
Product Length:	2.047 in, 52 mm
Product Width:	1.772 in, 45 mm
Row-to-Row Spacing:	.217 in, 5.5 mm
Sealable:	Yes
Serviceable:	Yes
Strain Relief:	With
Terminal Position Assurance:	Yes
UL Flammability Rating:	UL 94HB
