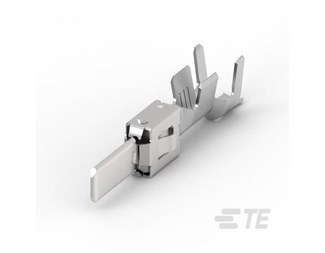

TE 1-962916-2

Varianter

Lagerstatus 2849 st

Leveranstid 1-2 dagar

5,70 SEK exkl. moms

Gå till produkt

Agency/Standard:	LV214
Compatible With Wire Base Material:	Copper
Contact Fabrication:	Stamped & Formed
Contact Size:	2.8mm
Crimp Type:	F-Crimp
Interface Plating:	Silver (Ag)
Mating Tab Thickness:	.031 in, .8 mm
Mating Tab Width:	.11 in, 2.8 mm
Operating Temperature (Max):	140 °C, 284 °F
Operating Temperature Range:	-40 – 140 °C, -40 – 284 °F
Packaging Method:	Box
Packaging Quantity:	3300
Primary Locking Feature:	Locking Lance
Product Terminates To:	Wire
Receptacle Style:	180°
Sealable:	Yes
Tab Length:	1.05 in, 26.8 mm
Terminal Seal Type:	Single Wire Seal (SWS)
Terminal Transmits:	25 – 40 A (Power)
Terminal Type:	Tab
Termination Method to Wire & Cable:	Crimp
Typical Current Rating:	30 A
Wire Contact Termination Area Plating Material:	Tin
Wire Size:	17 – 13 AWG, 1 – 2.5 mm²
Wire Size Search:	13 AWG, 14 AWG, 15 AWG, 16 AWG, 17 AWG, 1 mm², 1.25 mm², 1.5 mm², 2 mm², 2.5 mm²
