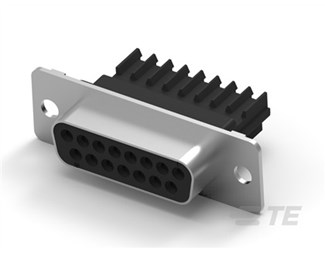

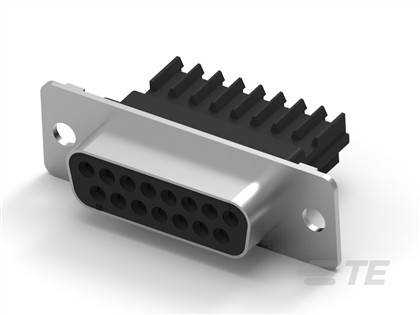

15 HDE MS RCPT,22-26, LEAD FREE

Best.nr 20201737

TE 1-745493-4

D-Sub Standard Connectors HDE-20 15P SOCKET Läs mer

Varianter

Lagerstatus 257 st
Leveranstid 1-2 dagar
191 SEK exkl. moms
Lägg i varukorg
Gå till produkt

  • Produktbeskrivning

    Cable Exit Angle: 180°
    Centerline (Pitch): .054 in, 2.77 mm
    Circuit Application: Signal
    Compatible With Wire & Cable Type: Discrete Wire , Round Jacketed Cable
    Connector & Contact Terminates To: Wire & Cable
    Connector & Housing Type: Receptacle
    Connector Mounting Type: Cable Mount (Free-Hanging)
    Connector Product Type: Connector Assembly
    Connector Shell Size: 2
    Connector System: Wire-to-Wire
    Contact Current Rating (Max): 2.4 A
    Contact Mating Area Plating Material Thickness: 30 µin
    Contact Size: Size 20
    Contact Type: Socket
    Insert Material: Thermoplastic
    Mating Retention: With
    Mating Retention Type: Mounting Holes
    Number of Positions: 15
    Number of Rows: 2
    Operating Temperature Range: -55 – 105 °C, -67 – 221 °F
    Packaging Method: Package
    Packaging Quantity: 112
    Shell Material: Steel
    Shell Plating Material: Tin
    Shielded: No
    Solid Wire Size: 26 – 22 AWG
    UL Flammability Rating: UL 94V-0
    Wire Size: 26 – 22 AWG, .15 – .4 mm²
