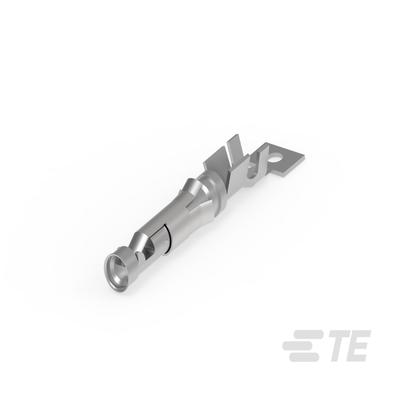

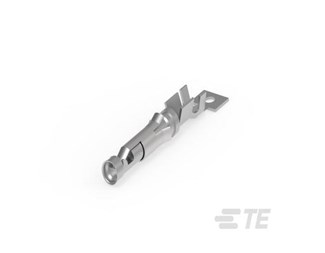

Power Contacts,RECEPTACLE

Best.nr 20111655

TE 163084-1

Standard Circular Contacts 062 SOC.ASS. TYP3+ Läs mer

Varianter

Minsta antal 200 st
Lagerstatus 400 st
Leveranstid 1-2 dagar
11,10 SEK exkl. moms
Lägg i varukorg
Gå till produkt

  • Produktbeskrivning

    Circuit Application: Power & Signal
    Compatible With Discrete Wire Type: Stranded
    Connector & Contact Terminates To: Wire & Cable
    Contact Base Material: Brass
    Contact Current Rating (Max): 13 A
    Contact Mating Area Plating Material: Tin
    Contact Mating Area Plating Material Finish: Bright
    Contact Mating Area Plating Material Thickness: 80 µin, 2.03 µm
    Contact Orientation: Straight
    Contact Retention Within Housing: With
    Contact Size: Size 16
    Contact Type: Socket
    Contact Underplating Material: Nickel
    Contact Underplating Material Thickness: 50 µin, 1.27 µm
    Mating Pin Diameter: .062 in, 1.57 mm
    Operating Temperature Range: -55 – 90 °C, -67 – 194 °F
    Packaging Method: Bag
    Packaging Quantity: 200
    Power Contact Type: Contact
    Termination Method to Wire & Cable: Crimp
    Wire Contact Termination Area Plating Material: Tin
    Wire Contact Termination Area Plating Material Finish: Bright
    Wire Contact Termination Area Plating Thickness: 80 µin, 2.03 µm
    Wire Insulation Support: With
    Wire Size: 18 – 15 AWG, .75 – 1.5 mm²
