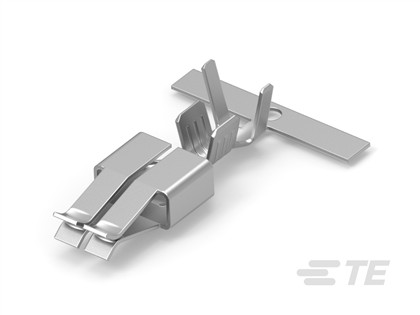

TIMER ST REC 1,0-2,5 CuSn (Sn) S/F

Best.nr 20203854

TE Standard timer Hylsor

STD TIMER CONTACT Läs mer

Varianter

Minsta antal 2000 st
Lagerstatus 2000 st
Leveranstid 1-2 dagar
7,80 SEK exkl. moms
Lägg i varukorg
Gå till produkt

  • Produktbeskrivning

    Contact Fabrication: Stamped & Formed
    Contact Size: 4.8mm , 5.8mm , 6.3mm
    Crimp Type: F-Crimp
    Interface Plating: Tin (Sn)
    Mating Tab Thickness: .031 in, .8 mm
    Mating Tab Width: .228 in, .248 in, 5.8 mm, 6.3 mm
    Operating Temperature (Max): 100 °C, 105 °C, 110 °C, 80 °C, 85 °C, 90 °C, 176 °F, 185 °F, 194 °F, 212 °F
    Operating Temperature Range: -40 – 110 °C, -40 – 230 °F
    Packaging Method: Reel
    Packaging Quantity: 2000
    Primary Locking Feature: Locking Lance
    Product Terminates To: Wire
    Sealable: No
    Terminal Transmits: 25 – 40 A (Power)
    Terminal Type: Receptacle
    Termination Method to Wire & Cable: Crimp
    Typical Current Rating: 25 A
    Wire Contact Termination Area Plating Material: Tin
    Wire Size: 17 – 13 AWG, 1 – 2.5 mm²
    Wire Size Search: 13 AWG, 14 AWG, 15 AWG, 16 AWG, 17 AWG, 1 mm², 1.25 mm², 1.5 mm², 2 mm², 2.5 mm²
