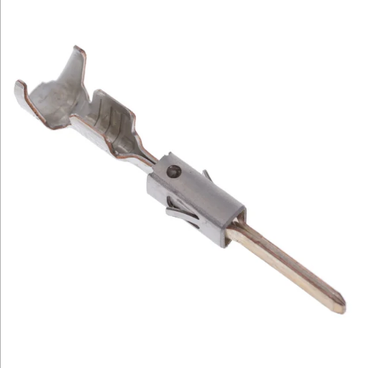

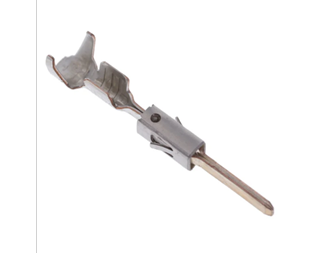

TAB A 1.6x0.6 CONTACT CF SWS Ag S/F

Best.nr 20115210

TE 964269-5

CONN TAB 18-20AWG CRIMP SILVER Läs mer

Varianter

Lagerstatus 550 st
Leveranstid 1-2 dagar
8,10 SEK exkl. moms
Lägg i varukorg
Gå till produkt

  • Produktbeskrivning

    Agency/Standard: DIN 72 551 Part 5 and 6
    Compatible With Wire Base Material: Copper
    Contact Fabrication: Stamped & Formed
    Contact Size: 1.6mm
    Crimp Type: F-Crimp
    Customer Preferred Contact: No
    Interface Plating: Silver (Ag)
    Mating Tab Thickness: .024 in, .6 mm
    Mating Tab Width: .063 in, 1.6 mm
    Operating Temperature (Max): 130 °C, 266 °F
    Operating Temperature Range: -40 – 130 °C, -40 – 266 °F
    Packaging Method: Reel
    Packaging Quantity: 4000
    Primary Locking Feature: Locking Lance
    Product Terminates To: Wire
    Receptacle Style: 180°
    Sealable: Yes
    Tab Length: .88 in, 22.4 mm
    Terminal Seal Type: Single Wire Seal (SWS)
    Terminal Transmits: 0 – 24 A (Low Power)
    Terminal Type: Tab
    Termination Method to Wire & Cable: Crimp
    Typical Current Rating: 10 A
    Wire Contact Termination Area Plating Material: Tin
    Wire Size: 20 – 17 AWG, .5 – 1 mm²
    Wire Size Search: 17 AWG, 18 AWG, 19 AWG, 20 AWG, .5 mm², .6 mm², .75 mm², 1 mm²
