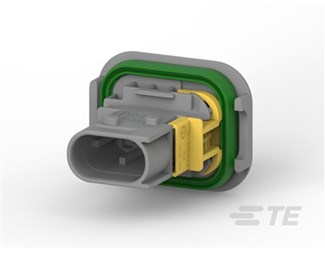

TE AMP 2-1703841-1

Varianter

Lagerstatus 440 st

Leveranstid 1-2 dagar

23,60 SEK exkl. moms

Gå till produkt

Cable Exit Angle:	180° , 90°
Centerline (Pitch):	.236 in, 6 mm
Circuit Application:	Signal
Connector & Housing Type:	Housing for Male Terminals
Connector Height:	1.173 in, 29.8 mm
Connector Mounting Type:	Panel Mount
Connector Position Assurance Capable:	No
Connector Shape:	Rectangular
Connector System:	Wire-to-Wire
Contact Current Rating (Max):	40 A
Contact Size:	2.8mm
Contact Type:	Tab
Degree of Protection:	IP67
Housing Material:	PBT GF
Mating Alignment:	With
Mating Alignment Type:	Keyed
Mating Tab Width:	.11 in, 2.8 mm
Nominal Voltage Architecture:	12 V, 24 V, 42 V, 60 V
Number of Positions:	2
Number of Rows:	1
Operating Temperature (Max):	100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C, 70 °C, 80 °C, 85 °C
Operating Temperature Range:	-40 – 140 °C, -40 – 284 °F
Operating Voltage:	60 VDC
Packaging Method:	Box
Packaging Quantity:	450
Primary Locking Feature:	On the terminal
Primary Product Color:	Gray
Product Length:	1.476 in, 37.5 mm
Product Width:	1.894 in, 48.1 mm
Sealable:	Yes
Serviceable:	Yes
Strain Relief:	Add By Accessory
Terminal Position Assurance:	Yes
UL Flammability Rating:	UL 94V-0
