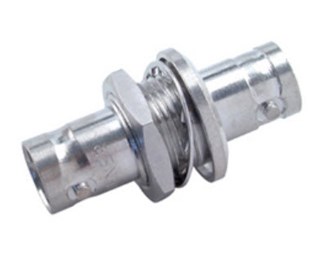

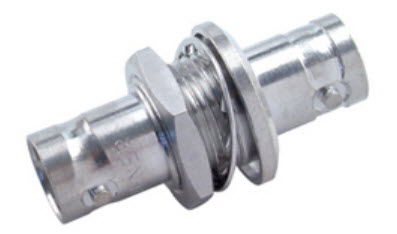

ADAPTER BNC CHASSIS ISOLERAT FM/FM 75 ohm HUBER SUHNER

Best.nr 20104760

Isolerad koax chassiadapter BNC hona/hane 75 ohm

Isolert 75 Ohm BNC female/female adapter for montering i chassis. Läs mer

Varianter

Lagerstatus 0 st
Leveranstid >21 dagar
1 010 SEK exkl. moms
Lägg i varukorg
Gå till produkt

  • Produktbeskrivning

    • Interface Standards (2) Compatible with IEC 61169-8_MIL-STD-348A/301_CECC 22120
    • Outer Contact Brass, Brass
    • Fastening Nut Plating SUCOPLATE (R) Plating, SUCOPLATE (R) Plating
    • Centre Contact Plating Gold Plating (Nickel underplated), Gold Plating (Nickel underplated)
    • Outer Contact Plating SUCOPLATE (R) Plating, SUCOPLATE (R) Plating
    • Panel Thickness 2mm
    • Body Plating SUCOPLATE (R) Plating, SUCOPLATE (R) Plating
    • Gasket NR (Natural Rubber), NR (Natural Rubber)
    • Adaptor Configuration within series
    • Washer Plating SUCOPLATE (R) Plating, SUCOPLATE (R) Plating
    • Centre Contact Copper Beryllium Alloy, Copper Beryllium Alloy
    • Washer Bronze, Bronze
    • Weight 0.0174kg
    • Body Brass, Brass
    • External Remarks For insulated mounting
    • Connector Gender 1 jack (female)
    • Connector Gender 2 jack (female)
    • Fastening Nut Brass, Brass
    • Insulator PFA / PTFE, PFA / PTFE
    • 2002/96/EC (WEEE) no special marking needed
    • Class 1184
    • 2000/53/EC (ELV) compliant
    • Connector Series 2 BNC
    • Connector Series 1 BNC
    • Connector Description Bulkhead adaptor jack/jack
    • Gender jack/jack
    • Highlight1 For insulated mounting
    • ID 34_BNC-75-0-2/133_N
    • Impedance 75
    • Interface Frequency max. 1GHz
    • Interface Standards Compatible with IEC 61169-8_MIL-STD-348A/301_CECC 22120
    • Junction adaptor
    • 2011/65/EC (RoHS) compliant
    • Mounting bulkhead
    • Number of Matings 500
    • Operating Temperature max. 165°C
    • Operating Temperature min. -65°C
    • Packaging Single
    • PATTERN CLASSES 34
    • CONNECTOR SHAPE straight
    • Type Number 34_BNC-75-0-2/133_NE
    • OBJECT_ID 3097227

  • Teknisk specifikation

    Kontakttyp A
    BNC Female
    Kontakttyp B
    BNC Female
    Impedans
    75 Ohm
    LSZH
    No
    DNV godkänd
    No
    Chassis
    Yes
